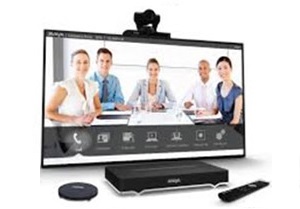

Avaya IX Room System XT7100
Model: XT7100
IP: H.323, SIP (RFC 3261)
Bit rate H.323, SIP: up to 6 / 12Mbps
Video: H.263, H.263+, H.263++, H.264, H.264 High Profile, H.265 HEVC, SVC
HDMI input formats: 3840x2160 @ 30fps, 1080x1920 @ 60fps,...
HDMI output formats: 3840x2160 @ 30fps, 1080x1920 @ 60fps,...
Content Sharing: Dual video H.239 (H.323), BFCP (SIP)
Network Interfaces: Dual 10/100/1000 Base-T Full-duplex
Video inputs: 2 x HDMI , 1 x DVI-I, 3 x Additional HDMI via switcher
Video outputs: 2 x HDMI for dual display
Audio outputs: 2 x HDMI, 1 x Microphone Array Pod (RJ11),...

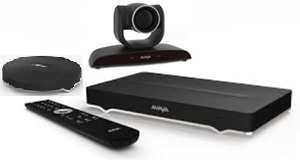

Avaya IX Room System XT5000
Model: XT5000
IP: H.323, SIP (RFC 3261)
Bit rate H.323, SIP: up to 6 / 12Mbps
Video: H.263, H.263+, H.263++, H.264, H.264 High Profile, SVC
HDMI input formats: 1080x1920 @ 60fps,...
HDMI output formats: 1080x1920 @ 60fps,...
Content Sharing: Dual video H.239 (H.323), BFCP (SIP)
Network Interfaces: Dual 10/100/1000 Base-T Full-duplex
Video inputs: 2 x HDMI , 1 x DVI-I, 3 x Additional HDMI via switcher
Video outputs: 2 x HDMI for dual display
Audio outputs: 2 x HDMI, 1 x Microphone Array Pod (RJ11),...

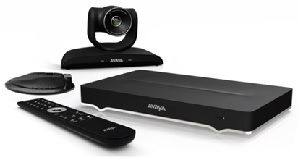

Avaya IX Room System XT4300
Model: XT4300
IP: H.323, SIP (RFC 3261)
Bit rate H.323, SIP: up to 4 / 12Mbps
Video: H.263, H.263+, H.263++, H.264, H.264 High Profile, SVC
HDMI input formats: 1080x1920 @ 60fps,...
HDMI output formats: 1080x1920 @ 60fps,...
Content Sharing: Dual video H.239 (H.323), BFCP (SIP)
Network Interfaces: Dual 10/100/1000 Base-T Full-duplex
Video inputs: 2 x HDMI , 1 x DVI-I, 3 x Additional HDMI via switcher
Video outputs: 2 x HDMI for dual display
Audio outputs: 2 x HDMI, 1 x Microphone Array Pod (RJ11),...

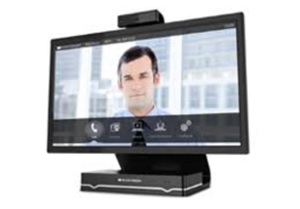

Avaya IX Room System XT240
Model: XT240
Display: Screen size: 23.6” LED widescreen
Camera: Resolution: 1080p30, Digital Zoom: 1.8x
IP: H.323, SIP (RFC 3261)
Bit rate H.323, SIP: up to 4 / 12Mbps
Video: H.263, H.263+, H.263++, H.264, H.264 High Profile, SVC
HDMI input formats: 1080x1920 @ 60fps,...
HDMI output formats: 1080x1920 @ 60fps,...
Content Sharing: Dual video H.239 (H.323), BFCP (SIP)
Network Interfaces: Dual 10/100/1000 Base-T Full-duplex
Video outputs: 2 x HDMI for dual display
Audio outputs: 1 x HDMI, 1 x Microphone array, Option: 1 x Microphone Bluetooth

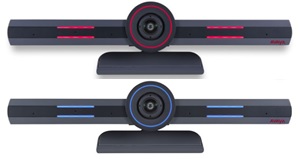

Avaya IX Collaboration Unit CU360
Model: CU360
Camera: Sensor: 4kp30, Resolution: 1080p30, Digital Zoom: 3x
IP: H.323, SIP (RFC 3261)
Bit rate H.323, SIP: up to 4Mbps
Video: H.263, H.263+, H.263++, H.264, H.264 High Profile, SVC
HDMI input formats: 1080x1920 @ 60fps,...
HDMI output formats: 1080x1920 @ 60fps,...
Content Sharing: Dual video H.239 (H.323), BFCP (SIP)
Network Interfaces: 10/100/1000 Base-T Full-duplex
Video outputs: 1 x HDMI for dual display
Audio outputs: 1 x HDMI, 1 x Microphone array, Option: 1 x Microphone Bluetooth
