HVE Server Virtualization Platform
Model: HVE-STAGE-BIX-MINI - 1U Chassis
CPU: Single or Dual 8-Core Intel Silver
RAM: 64-256GB DDR4 @ 2667MHz
NIC: Dual 10GBase-T
Storage: 1-24 TB Read-Intensive SSD w/Hardware RAID / OS SATADOM
Hypervisor: VMWare, Microsoft or any Type 1 hypervisor compatible with Intel

HVE Server Virtualization Platform
Model: HVE-STAGE-BIX - 1U Chassis
CPU: Dual 14-Core Intel Gold v5
RAM: 256-512GB DDR4 @ 2667MHz
NIC: 2x Dual 10GBase-T (Dual SFP 10G, Dual QSFP 40G, Fibre channel available)
Storage: 1-24 TB High Endurance Datacenter SSD w/Hardware RAID / OS SATADOM
Hypervisor: VMWare, Microsoft or any Type 1 hypervisor compatible with Intel

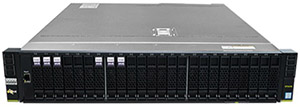

HVE Server Virtualization Platform
Form Factor: 2U multi-node server
Server Nodes: (4) half-width server nodes
Processors: (1) or (2) Intel® Xeon® scalable processors
Memory: (16) DDR4 DIMM slots
Internal Storage: (6) x 2.5” NVMe/SAS/SATA/SSD bays
LOM Network Ports: (2) 1GbE and (2) 10GbE
PCIe Expansion: Up to (2) PCIe slots
Fan Modules: (4) hot-swappable fan modules in N+1 redundancy mode**
Power Supply Units: (2) hot-swappable 3000W AC PSUs in 1+1 redundancy mode*, Supports 110V to 220V AC
Management: Supports SNMP and IPMI. Provides virtual KVM, virtual media, SOL, remote control, hardware monitoring, and intelligent power supply. Adopts the power capping technology and independant management network ports, and supports NC-SI
Operating Temps: 50C - 350C (410F - 950F)
* Suport for PSU 1+1 redundancy is subject to chassis configuration and power consumption
** Holding rails and cable racks are required to implement fan module hot swap

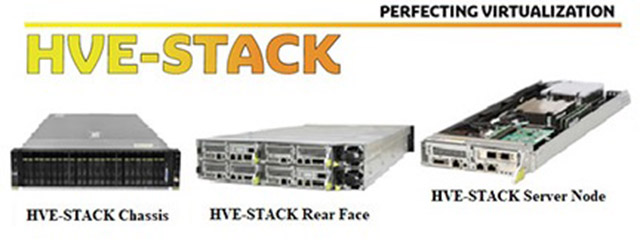

HVE-STACK Server Node
Model: HVE-STACK-ST-S - 1U half-width node chassis
CPU: Dual 16-Core/22-Core Intel Gold v5
RAM: 256/512GB DDR4 @ 2667MHz
NIC: 2x Dual 10GBase-T (Dual SFP 10G, Dual QSFP 40G, Fibre channel available)
Storage: OS SD Card, 2-3200GB PCIe NVMe, optional NVMe or SSD
Hypervisor: VMWare, Microsoft or any Type 1 hypervisor compatible with Intel
